The AMMC-6140-W10 is a 40GHz frequency multiplier with a gain of 1dB. It is packaged in a CHIP format and is suitable for surface mount applications. The device is lead free and RoHS compliant, making it a suitable choice for environmentally friendly designs. The operating frequency range is from 10 GHz to 20 GHz, and the nominal supply current is 27mA.
Frequency10 GHz to 20 GHz
PackageCHIP
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom AMMC-6140-W10 technical specifications.
General
| Bandwidth | 40GHz |
| Package/Case | CHIP |
| Contact Plating | Gold |
| Gain | 1dB |
| Lead Free | Lead Free |
| Mount | Surface Mount |
| Nominal Supply Current | 27mA |
| Operating Frequency | 10 GHz to 20 GHz |
| Package Quantity | 10 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom AMMC-6140-W10 Datasheet
Download the complete datasheet for Broadcom AMMC-6140-W10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

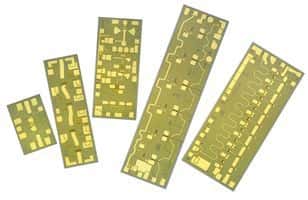

Product Images
