Broadcom

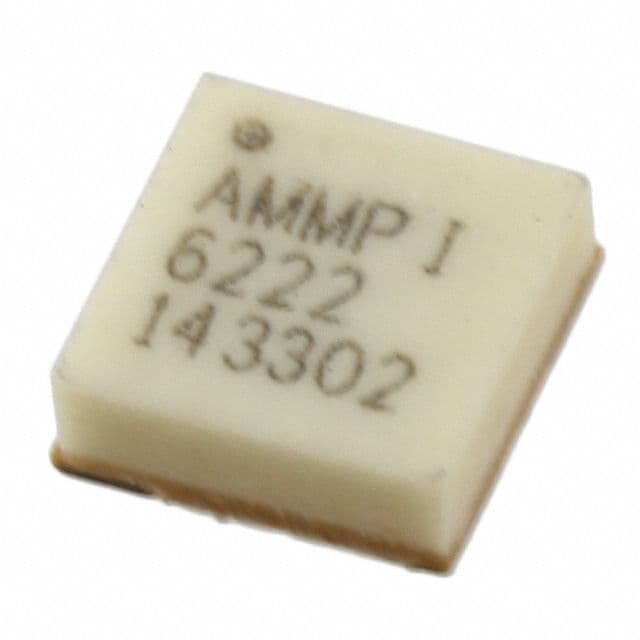

AMMP-6222-BLKG
Wide Band Low Power Amplifier, 7000MHz Min, 21000MHz Max, 1 Func, 5 X 5 MM, 1.25 MM HEIGHT, 8 PIN
Frequency21GHz
PackageSMD/SMT
Current160mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom AMMP-6222-BLKG technical specifications.
General
| Bandwidth | 21GHz |
| Package/Case | SMD/SMT |
| Frequency | 21GHz |
| Gain | 24dB |
| Lead Free | Lead Free |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Noise Figure | 2.3dB |
| Number of Channels | 1 |
| Operating Frequency | 21 GHz |
| Operating Supply Current | 120mA |
| Output Power (dBm) | 15.5dBm |
| P1dB | 15.5dBm |
| Package Quantity | 10 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Supply Current | 160mA |
Compliance
| RoHS | Compliant |
