Red optoelectronic device featuring a single LED element with a 120° viewing angle. This surface mount component operates with a 350mA forward current and a 5V reverse voltage, delivering 40 lumens of luminous flux at a 625nm wavelength. Designed for a wide temperature range from -40°C to 85°C, it has a power dissipation of 1.05W and a flat, round lens style.
MountingSurface Mount, Screw
Power1.05W
Quick Jump:
Technical Specifications
Broadcom ASMT-MRK0-AHJ00 technical specifications.
General
Color
Red
Depth
19.9mm
Forward Current
350mA
Height
4.9mm
Illumination Color
Red
Lens Style
Flat, Round, Circular
Luminous Flux
40lm
Max Current Rating
350mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.05W
Mount
Surface Mount, Screw
Number of Elements
1
Number of LEDs
1
Package Quantity
350
Packaging
Tray
Power Dissipation
1.05W
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
5V
RoHS Compliant
Yes
Series
Moonstone™
Test Temperature
25°C
Viewing Angle
120°
Wavelength
625nm
Compliance
RoHS
Compliant
Datasheet
Broadcom ASMT-MRK0-AHJ00 Datasheet
Download the complete datasheet for Broadcom ASMT-MRK0-AHJ00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

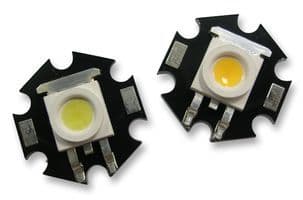

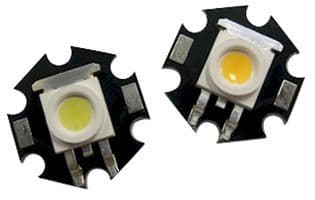

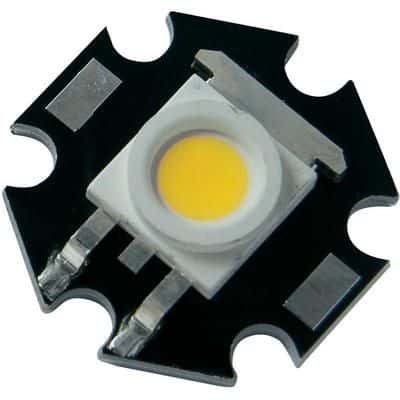

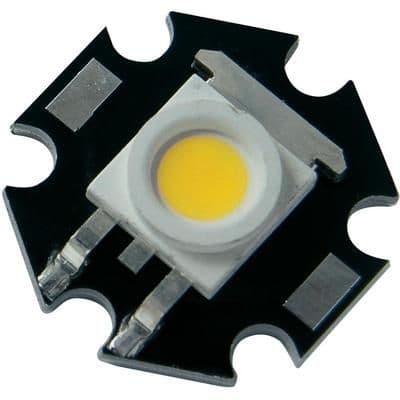

Product Images
