Broadcom
MGA-62563-TR2G
Wide Band Low Power Amplifier, 100MHz Min, 3000MHz Max, 1 Func, GAAS, MINIATURE, SC-70, SOT-363, 6 PIN
Frequency100MHz
PackageSOT-363
Current77mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom MGA-62563-TR2G technical specifications.
General
Package/Case
SOT-363
Frequency
100MHz
Gain
23.4dB
Lead Free
Lead Free
Max Frequency
3GHz
Min Frequency
100MHz
Max Operating Temperature
150°C
Max Power Dissipation
600mW
Max Supply Voltage
3V
Mount
Surface Mount
Noise Figure
1.2dB
Number of Channels
1
Operating Frequency
100 MHz to 3 GHz
Operating Supply Current
77mA
P1dB
17.7dBm
Package Quantity
10000
Packaging
Tape and Reel
Power Dissipation
600mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
77mA
Test Frequency
2GHz
Compliance
RoHS
Compliant
Datasheet
Broadcom MGA-62563-TR2G Datasheet
Download the complete datasheet for Broadcom MGA-62563-TR2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

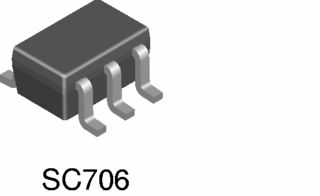

Product Images
