Voltage250V
Voltage Rating250V
Current Rating10A
Power2.5W
Quick Jump:
Technical Specifications
Bulgin FX0369/1 technical specifications.
General
Body Material
PET
Contact Material
Brass, Silver
Contact Plating
Silver
Current Rating
10A
Fuse Current
16A
Fuse Size
0.197 Dia x 0.787 L (5mm x 20mm)
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Number of Circuits
1
Number of Poles
1
Package Quantity
100
Power Dissipation
2.5W
Reach SVHC Compliant
No
Series
Touchproof® PC2
Termination
Solder
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
500V
Compliance
RoHS
Compliant
Datasheet
Bulgin FX0369/1 Datasheet
Download the complete datasheet for Bulgin FX0369/1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

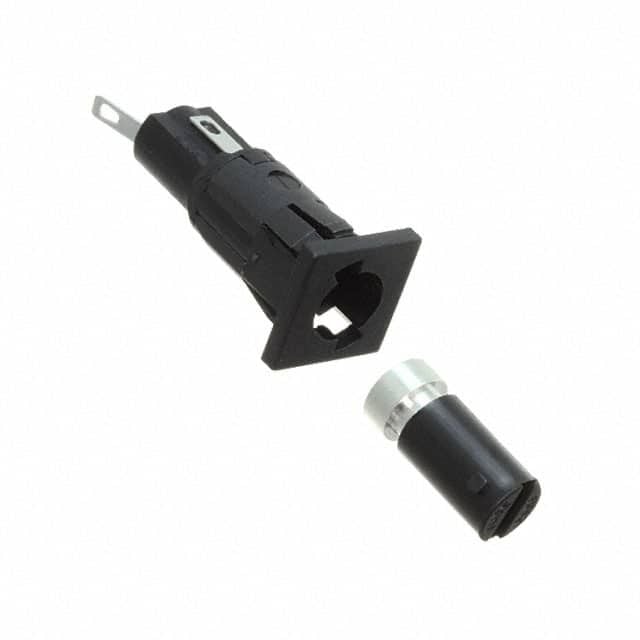

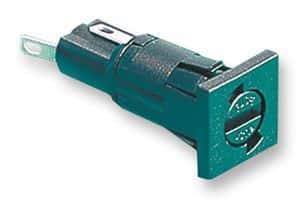

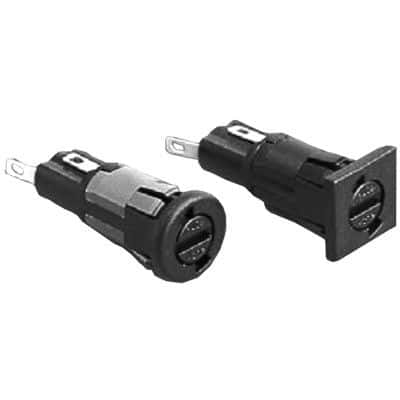

Product Images
