Technical Specifications

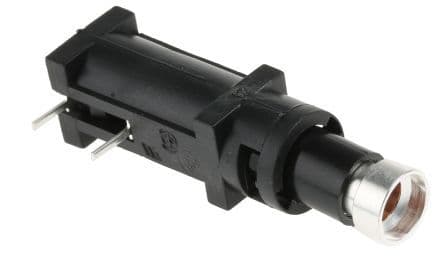

Bulgin FX0457 technical specifications.
General
| Approvals | UL |
| Body Material | PET, Polyester |
| Contact Material | Brass, Tin, Silver |
| Contact Plating | Silver |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Fuse Current | 10A |
| Fuse Size | 0.197 Dia x 0.787 L (5mm x 20mm) |
| Material | Brass, Silver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, PCB, Surface Mount |
| Number of Circuits | 1 |
| Number of Poles | 1 |
| Orientation | Horizontal |
| Package Quantity | 1 |
| Reach SVHC Compliant | No |
| Series | Touchproof® PC2 |
| Termination | PC Pin |
| Voltage | 250V |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin FX0457 Datasheet
Download the complete datasheet for Bulgin FX0457 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
