Through-hole thick film resistor offering 75 ohms resistance with a 1% tolerance. Features a 60W maximum power dissipation and a 250V voltage rating, housed in a TO-220 package. Operating temperature range spans -55°C to 150°C, with moisture-resistant properties and radial lead terminations. This RoHS compliant component is designed for through-hole mounting.
PackageTO-220
Resistance75R
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Caddock MP2060-75.0-1% technical specifications.
General
Package/Case
TO-220
Depth
4.45mm
Features
Moisture Resistant
Height
16.26mm
Lead Diameter
0.89mm
Lead Free
Lead Free
Lead Length
12.7mm
Lead Pitch
5.08mm
Length
10.41mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
60W
Mount
Through Hole
Number of Terminations
2
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resistance
75R
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
MP2060
Termination
Radial
Thickness
0.01inch
Tolerance
1%
Voltage Rating
250V
DC Rated Voltage
250V
Width
4.45mm
Compliance
RoHS
Compliant
Datasheet
Caddock MP2060-75.0-1% Datasheet
Download the complete datasheet for Caddock MP2060-75.0-1% to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

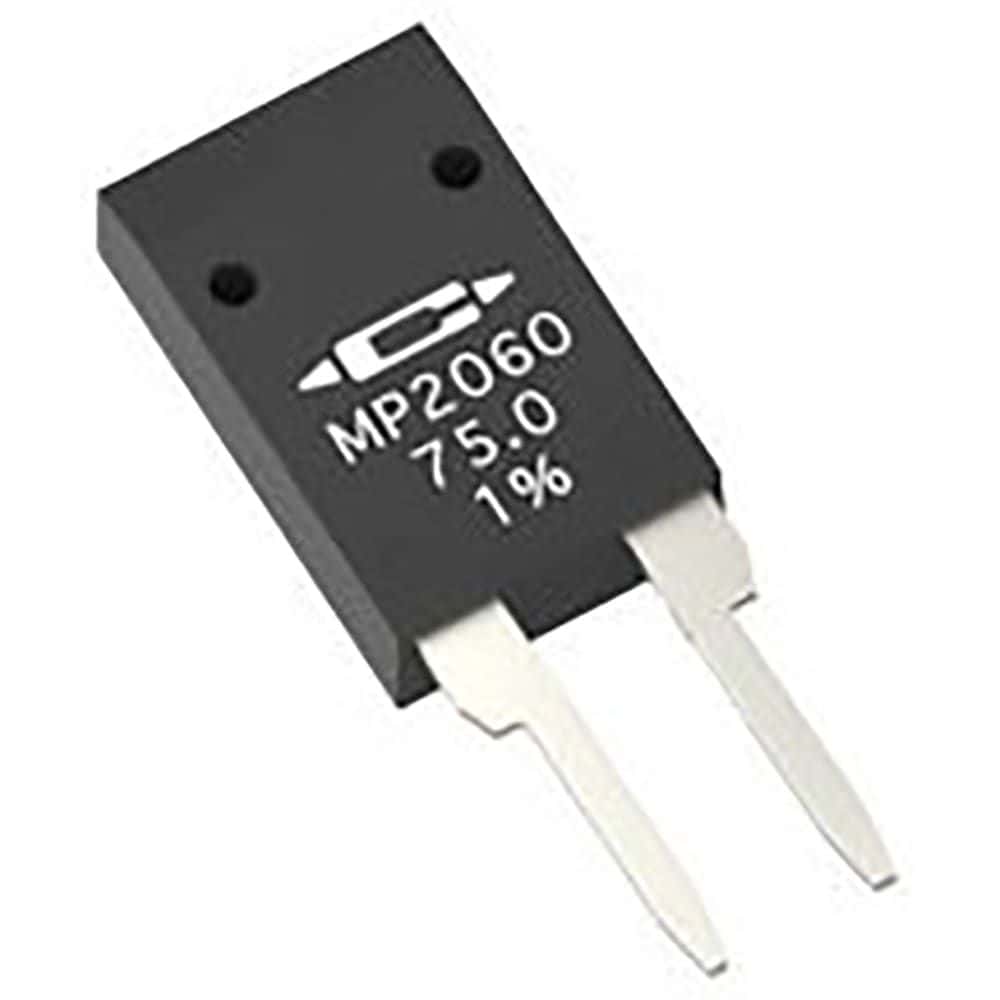

Product Images
