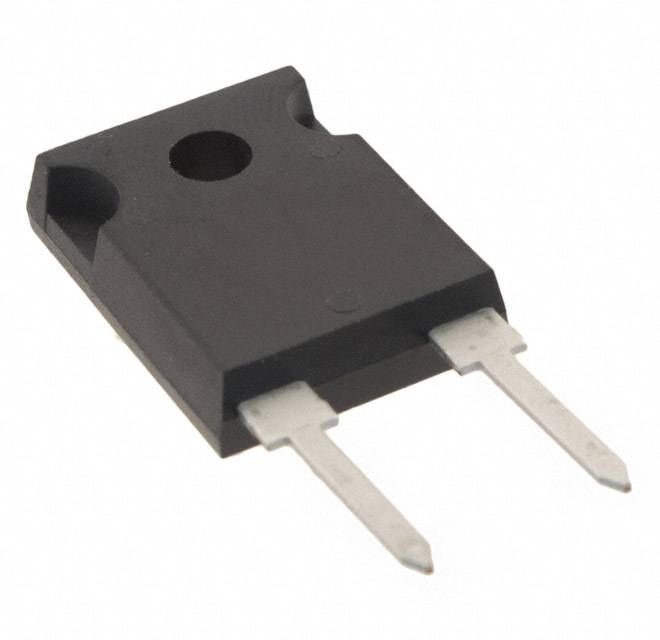

Through-hole thick film fixed resistor, 5 Ohm resistance with 1% tolerance, rated for 100W maximum power dissipation. Features a TO-247 package with radial terminations, a lead pitch of 10.16mm, and lead diameter of 0.81mm. Operates across a temperature range of -55°C to 175°C, is moisture resistant, and RoHS compliant. Dimensions include a length of 15.75mm, width and depth of 4.95mm, and a height of 20.7mm.
PackageTO-247
Resistance5R
Quick Jump:
Technical Specifications
Caddock MP9100-5.00-1% technical specifications.
General
Package/Case
TO-247
Depth
4.95mm
Features
Moisture Resistant
Height
20.7mm
Lead Diameter
0.81mm
Lead Free
Lead Free
Lead Length
14.5mm
Lead Pitch
10.16mm
Length
15.75mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
100W
Number of Terminations
2
Package Quantity
25
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resistance
5R
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
Kool-Pak®MP9000
Termination
Radial
Thickness
0.01inch
Tolerance
1%
Width
4.95mm
Compliance
RoHS
Compliant
Datasheet
Caddock MP9100-5.00-1% Datasheet
Download the complete datasheet for Caddock MP9100-5.00-1% to view detailed technical specifications.
