Through-hole fixed resistor with 50 Ohm resistance and 1% tolerance, rated for 100W maximum power dissipation. Features a TO-247 package with radial terminations, a lead pitch of 10.16mm, and dimensions of 15.75mm length, 4.95mm depth, and 23.49mm height. Operates across a temperature range of -55°C to 175°C, is moisture resistant, lead-free, and RoHS compliant.
PackageTO-247
Resistance50R
Quick Jump:
Technical Specifications
Caddock MP9100-50.0-1% technical specifications.
General
Package/Case
TO-247
Depth
4.95mm
Features
Moisture Resistant
Height
23.49mm
Lead Free
Lead Free
Lead Pitch
10.16mm
Length
15.75mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
100W
Number of Terminations
2
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resistance
50R
Resistance Tolerance
1%
Resistor Type
Thick Film, Metal Film
RoHS Compliant
Yes
Series
Kool-Pak®MP9000
Termination
Radial
Thickness
0.01inch
Tolerance
1%
Width
0.01inch
Compliance
RoHS
Compliant
Datasheet
Caddock MP9100-50.0-1% Datasheet
Download the complete datasheet for Caddock MP9100-50.0-1% to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

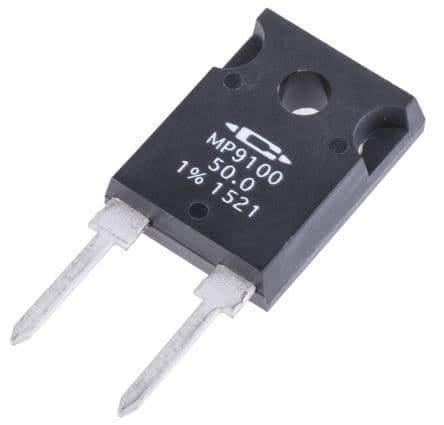

Product Images
