Through-hole fixed resistor with 1 Ohm resistance and 1% tolerance, rated for 30W maximum power dissipation and 250V DC. Features a TO-220 package with radial terminations, 5.08mm lead pitch, and 0.64mm lead diameter. Operating temperature range is -55°C to 150°C. This moisture-resistant, lead-free component is RoHS compliant.
PackageTO-220
Resistance1R
Voltage Rating250V
Quick Jump:
Technical Specifications
Caddock MP930-1.00-1% technical specifications.
General
Package/Case
TO-220
Depth
3.18mm
Features
Moisture Resistant
Height
16.26mm
Lead Diameter
0.64mm
Lead Free
Lead Free
Lead Length
12.7mm
Lead Pitch
5.08mm
Length
10.41mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
30W
Number of Terminations
2
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resistance
1R
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
Kool-Pak®MP900
Termination
Radial
Thickness
0.01inch
Tolerance
1%
Voltage Rating
250V
DC Rated Voltage
250V
Width
3.18mm
Compliance
RoHS
Compliant
Datasheet
Caddock MP930-1.00-1% Datasheet
Download the complete datasheet for Caddock MP930-1.00-1% to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

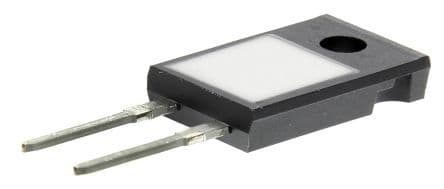

Product Images
