Through-hole fixed resistor with 500 Ohm resistance and 1% tolerance. Features 30W maximum power dissipation, 250V voltage rating, and a TO-220 package. Operates across a -55°C to 150°C temperature range and offers moisture resistance. Radial terminations with 12.7mm lead length and 0.01-inch pitch. Lead-free and RoHS compliant.
PackageTO-220
Resistance500R
Voltage Rating250V
Quick Jump:
Technical Specifications
Caddock MP930-500-1% technical specifications.
General
Package/Case
TO-220
Features
Moisture Resistant
Lead Free
Lead Free
Lead Length
12.7mm
Lead Pitch
0.01inch
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
30W
Number of Terminations
2
Packaging
Rail/Tube
Reach SVHC Compliant
No
Resistance
500R
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
Kool-Pak®MP900
Termination
Radial
Thickness
0.01inch
Tolerance
1%
Voltage Rating
250V
DC Rated Voltage
250V
Width
0.01inch
Compliance
RoHS
Compliant
Datasheet
Caddock MP930-500-1% Datasheet
Download the complete datasheet for Caddock MP930-500-1% to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

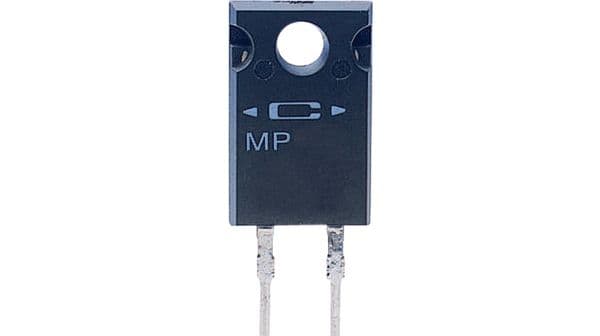

Product Images
