SMD crystal oscillator operating at 32.768kHz with a load capacitance of 12.5pF. Features a frequency tolerance of 20ppm and an Equivalent Series Resistance (ESR) of 50kR. Designed for surface mount applications, this component operates within a temperature range of -40°C to 85°C and is provided in cut tape packaging. It is RoHS compliant.
Frequency32.768kHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Cardinal Components CPFBZ-A2C5-32.768KD12.5 technical specifications.
General
ESR (Equivalent Series Resistance)
50kR
Frequency
32.768kHz
Frequency Tolerance
20ppm
Load Capacitance
12.5pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Cut Tape
RoHS Compliant
Yes
Series
CPFB
Compliance
RoHS
Compliant
Datasheet
Cardinal Components CPFBZ-A2C5-32.768KD12.5 Datasheet
Download the complete datasheet for Cardinal Components CPFBZ-A2C5-32.768KD12.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

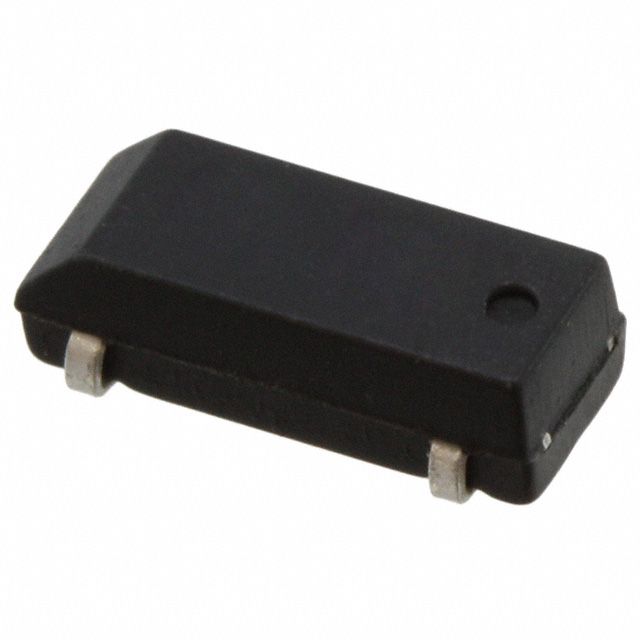

Product Images
