Frequency8MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Cardinal Components CSM4Z-A2B3C3-60-8.0D18 technical specifications.
General
Package/Case
SMD/SMT
ESR (Equivalent Series Resistance)
90R
Frequency
8MHz
Frequency Stability
30ppm
Frequency Tolerance
30ppm
Height
0.169inch
Length
0.449inch
Load Capacitance
18pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Series
CSM4
Width
0.185inch
Compliance
RoHS
Compliant
Datasheet
Cardinal Components CSM4Z-A2B3C3-60-8.0D18 Datasheet
Download the complete datasheet for Cardinal Components CSM4Z-A2B3C3-60-8.0D18 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

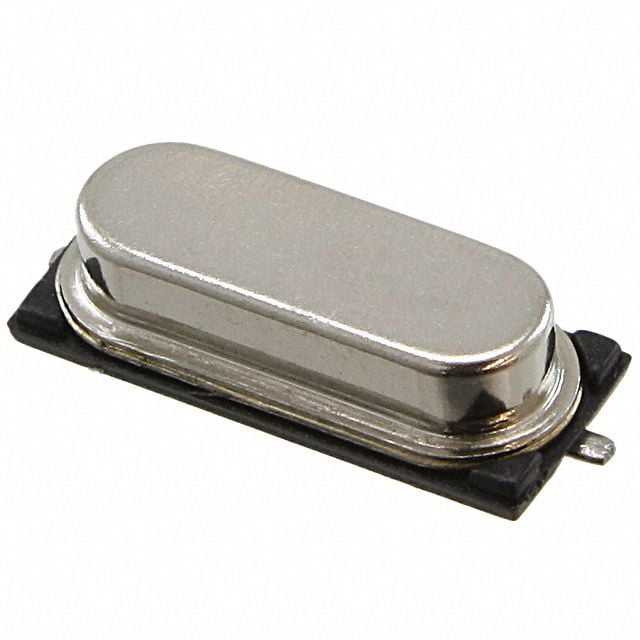

Product Images
