Carling Technologies
6FC57-73/TABS
Switch; Toggle; SPDT; ON-OFF-(ON)Round Actuator; Non-Illuminated; 15A; 125VAC; Tabs
Voltage Rating250V
MountingPanel
Quick Jump:
Technical Specifications
Carling Technologies 6FC57-73/TABS technical specifications.
General
| Actuator Length | 17.45mm |
| Actuator Material | Brass |
| Approvals | UL, CSA |
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 100000Cycles |
| Mount | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Orientation | Straight |
| RoHS Compliant | Yes |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Carling Technologies 6FC57-73/TABS Datasheet
Download the complete datasheet for Carling Technologies 6FC57-73/TABS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

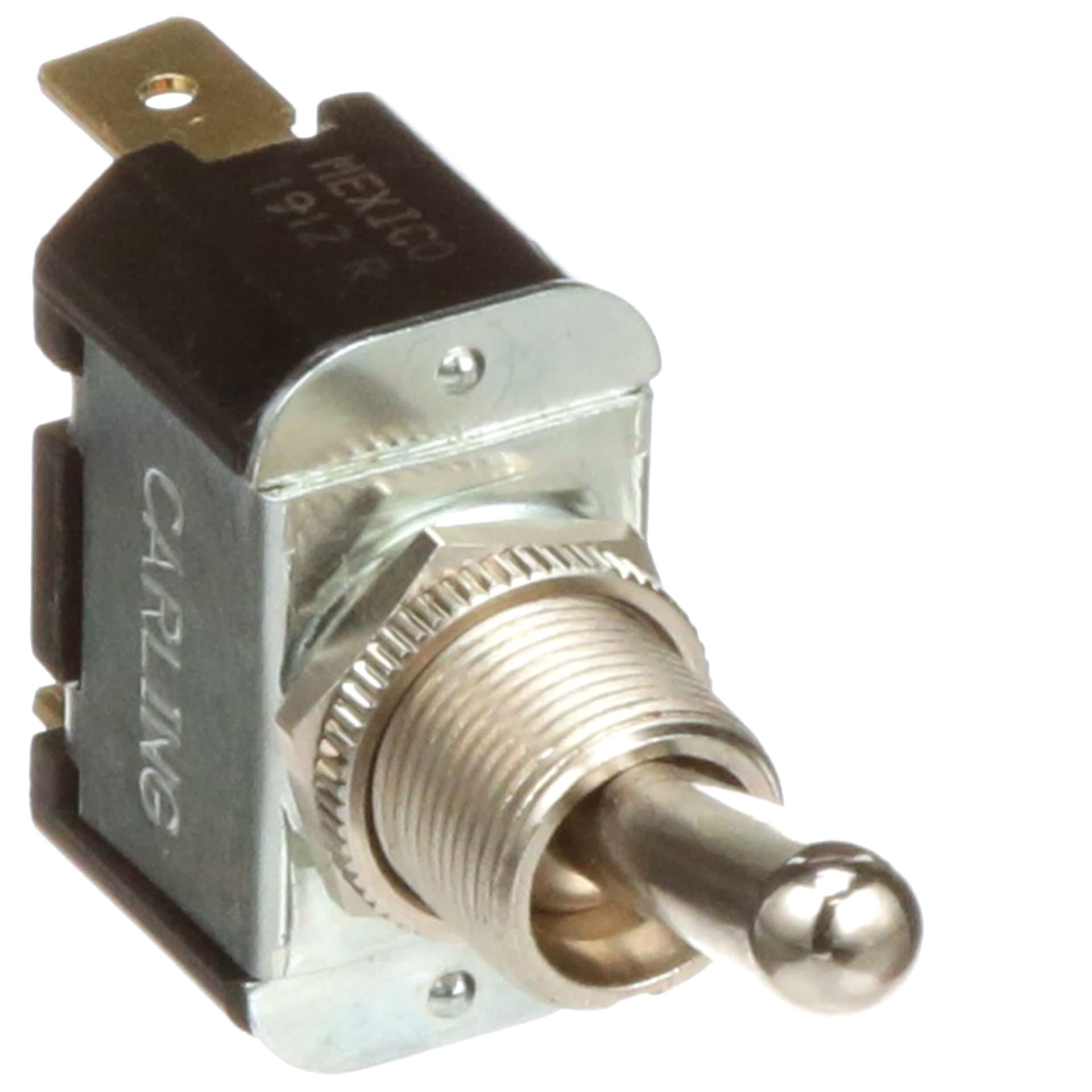

Product Images
