Carling Technologies
RR112-BB-NN
Rocker Switch, SPST, Latched, Quick Connect Terminal, Round Type Actuator, Panel Mount,
Current Rating12A
MountingPanel
Quick Jump:
Technical Specifications
Carling Technologies RR112-BB-NN technical specifications.
General
| Actuator Color | Black |
| Actuator Material | Nylon |
| Actuator Type | Rocker |
| Approvals | UL, VDE |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 12A |
| Electrical Life | 50000Cycles |
| Illumination Type | Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 250V |
| Mechanical Life | 100000Cycles |
| Mount | Panel |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Weight | 5g |
Compliance
| RoHS | Compliant |
Datasheet
Carling Technologies RR112-BB-NN Datasheet
Download the complete datasheet for Carling Technologies RR112-BB-NN to view detailed technical specifications.
No datasheet is available for this part.

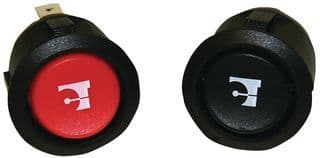

Product Images
