Carlo Gavazzi
IA08BLN25NO
Proximity Sensor; Sensor Input Type:Inductive; Sensing Range Max:25mm; Sensor Output:NPN; Switch Terminals:Cable; Output Type:Transistor; Sensor Housing:Cylindrical
MountingCable
Quick Jump:
Technical Specifications
Carlo Gavazzi IA08BLN25NO technical specifications.
General
Body Material
Stainless Steel
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
30V
Min Supply Voltage (DC)
10V
Mount
Cable
Output Type
NPN
Ratings
IP67
Reach SVHC Compliant
No
Response Frequency
2kHz
Sensing Distance
2.5mm
Sensing Method
Inductive
Series
IA
Shielding
Unshielded
Termination
Cable Leads
Compliance
RoHS
Not Compliant
Datasheet
Carlo Gavazzi IA08BLN25NO Datasheet
Download the complete datasheet for Carlo Gavazzi IA08BLN25NO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

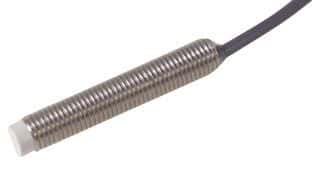

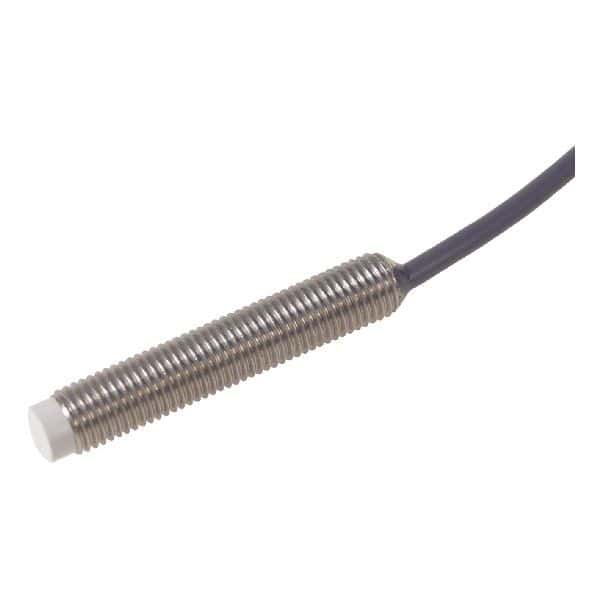

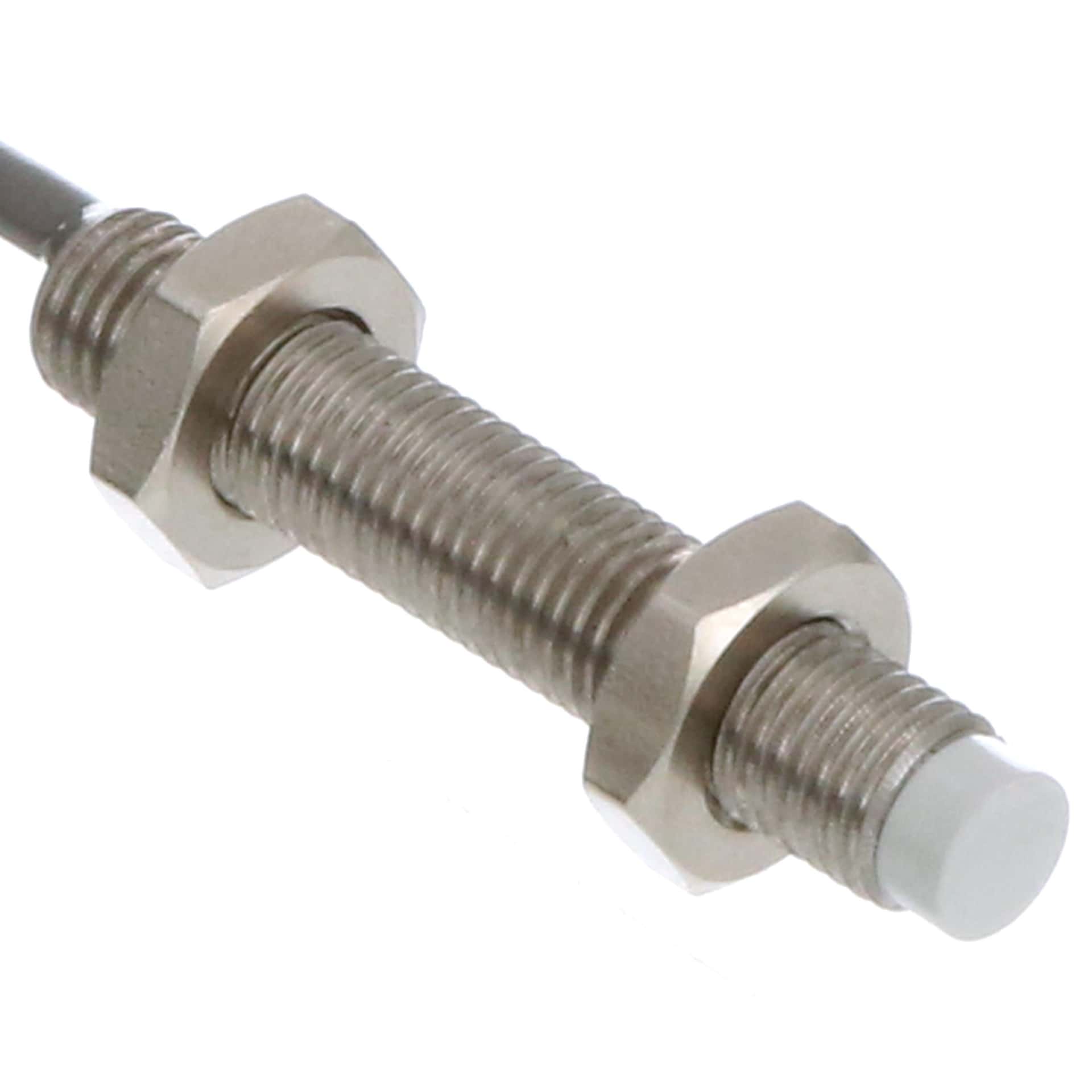

Product Images
