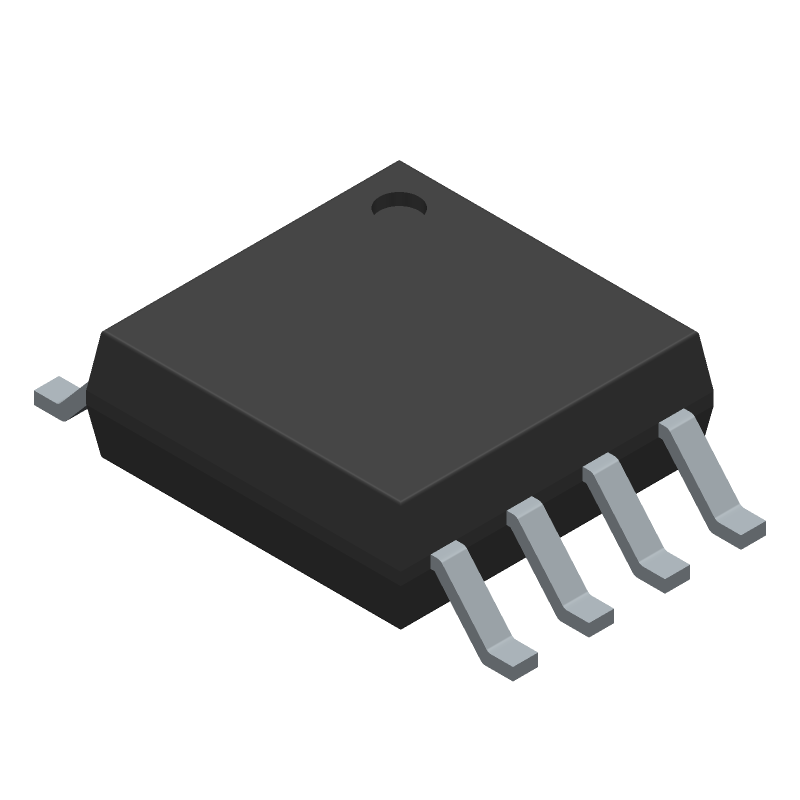

Serial EEPROM memory IC with 16,384 words of storage. Features 1.8V to 5.5V supply voltage range and a maximum clock frequency of 10MHz. Industrial temperature grade operation from -40°C to 85°C. Housed in an 8-terminal SOIC-8 package with a width of 3.9mm and length of 4.9mm.
Quick Jump:
Technical Specifications
Catalyst Semiconductor CAT25128VI-GT3 technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 8 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G8 |
| Width | 3.9 |
| Length | 4.9 |
| Pin Count | 8 |
| Number of Functions | 1 |
| Temperature Grade | INDUSTRIAL |
| Supply Voltage-Max (Vsup) | 5.5 |
| Supply Voltage-Min (Vsup) | 1.8 |
| Number of Words | 16384 |
| Number of Words Code | 16000 |
| Memory IC Type | EEPROM |
| Parallel/Serial | SERIAL |
| Clock Frequency-Max (fCLK) | 10 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8542.32.00.51 |
| REACH | unknown |
| Military Spec | False |
Datasheet
Catalyst Semiconductor CAT25128VI-GT3 Datasheet
Download the complete datasheet for Catalyst Semiconductor CAT25128VI-GT3 to view detailed technical specifications.
No datasheet is available for this part.
