CDE Illinois Capacitor
336CKE050M
ILLINOIS CAPACITOR 336CKE050M ALUMINUM ELECTROLYTIC CAPACITOR 33UF, 50V, 20%, RADIAL
PackageRadial
Capacitance33uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 336CKE050M technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.1% |
| ESR (Equivalent Series Resistance) | 5.024R |
| Height | 11mm |
| Lead Free | Lead Free |
| Lead Length | 15mm |
| Lead Pitch | 2mm |
| Length | 0.43inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CKE |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 336CKE050M Datasheet
Download the complete datasheet for CDE Illinois Capacitor 336CKE050M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

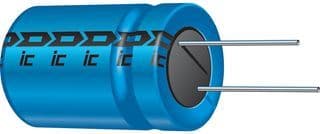

Product Images
