PackageRadial
Capacitance47uF
Voltage Rating160V
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 476CKE160M technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 5.291R |
| Height | 20mm |
| Lead Pitch | 5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 20% |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 476CKE160M Datasheet
Download the complete datasheet for CDE Illinois Capacitor 476CKE160M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

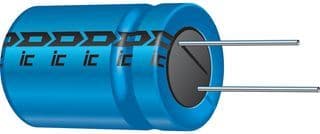

Product Images
