CDE Illinois Capacitor
826KXM063MJU

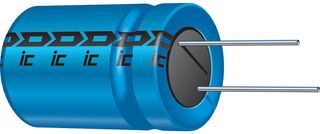

ILLINOIS CAPACITOR 826KXM063MJU ALUMINUM ELECTROLYTIC CAPACITOR 82UF, 63V, 20%, RADIAL
PackageRadial
Capacitance82uF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
CDE Illinois Capacitor 826KXM063MJU technical specifications.
General
| Capacitance | 82uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 2.0218mR |
| Height | 20mm |
| Height - Seated (Max) | 0.866inch |
| Impedance | 340mR |
| Lead Pitch | 0.138inch |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 400 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 600mA |
| RoHS Compliant | Yes |
| Series | KXM |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
CDE Illinois Capacitor 826KXM063MJU Datasheet
Download the complete datasheet for CDE Illinois Capacitor 826KXM063MJU to view detailed technical specifications.
No datasheet is available for this part.
