The CEL NE34018-A is a N-CHANNEL MOSFET with a maximum operating temperature of 125°C and a maximum power dissipation of 150mW. It has a continuous drain current of 120mA and a drain to source breakdown voltage of 4V. The device is packaged in a SOT-343 case and is suitable for use in high-frequency applications up to 2GHz.
Frequency2GHz
PackageSOT-343
Voltage Rating4V
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
CEL NE34018-A technical specifications.
General
| Package/Case | SOT-343 |
| Continuous Drain Current (ID) | 120mA |
| Drain to Source Breakdown Voltage | 4V |
| Drain to Source Voltage (Vdss) | 4V |
| Frequency | 2GHz |
| Gain | 16dB |
| Gate to Source Voltage (Vgs) | -3V |
| Max Operating Temperature | 125°C |
| Max Power Dissipation | 150mW |
| Noise Figure | 0.6dB |
| Operating Frequency | 2 GHz |
| Packaging | Bulk |
| Polarity | N-CHANNEL |
| Power Dissipation | 150mW |
| Technology | GAAS |
| Test Voltage | 2V |
| Voltage Rating | 4V |
Compliance
| RoHS | Compliant |
Datasheet
CEL NE34018-A Datasheet
Download the complete datasheet for CEL NE34018-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

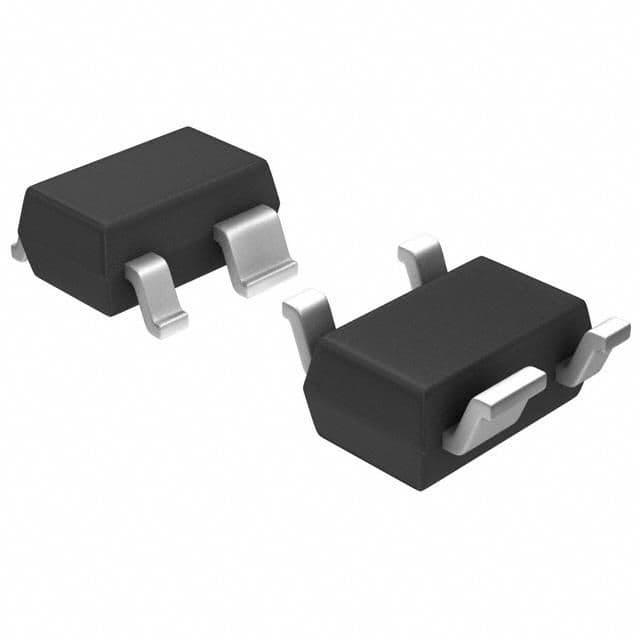

Product Images
