Technical Specifications
CEL NE68819-T1-A technical specifications.
General
| Package/Case | SOT-523 |
| Collector Emitter Breakdown Voltage | 6V |
| Collector-emitter Voltage-Max | 6V |
| Continuous Collector Current | 100mA |
| Emitter Base Voltage (VEBO) | 2V |
| Gain | 4dB |
| Lead Free | Lead Free |
| Max Breakdown Voltage | 6V |
| Max Collector Current | 100mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Operating Frequency | 1 GHz |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Transition Frequency | 5GHz |
Compliance
| RoHS | Compliant |
Datasheet
CEL NE68819-T1-A Datasheet
Download the complete datasheet for CEL NE68819-T1-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

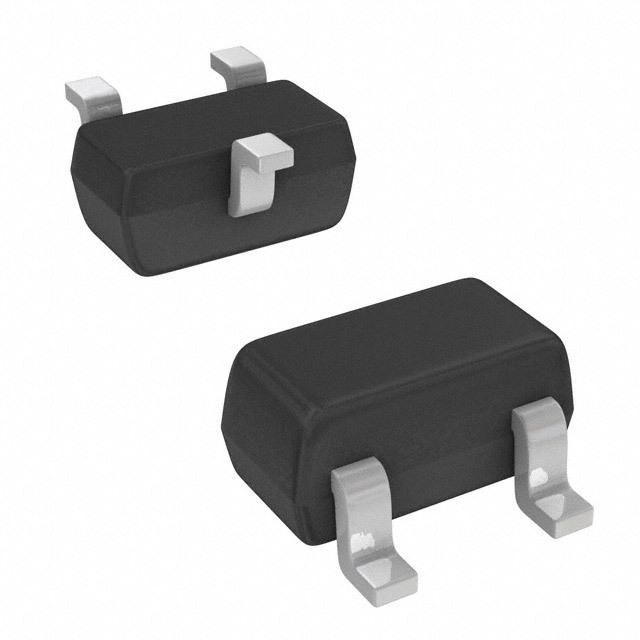

Product Images
