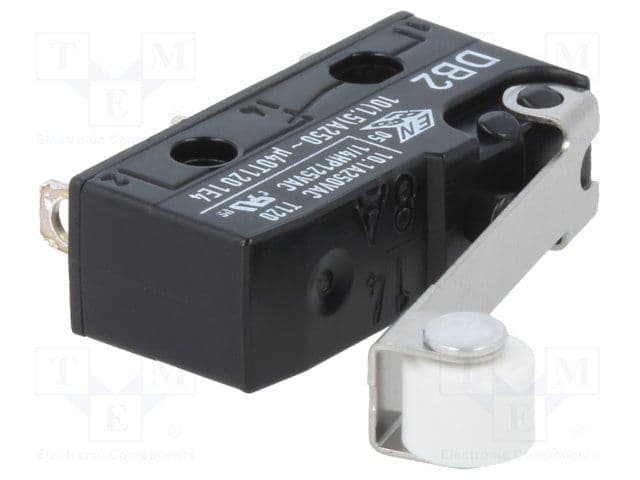

SPDT basic/snap action switch featuring a 10A current rating and 10.1A maximum contact current rating. This switch utilizes a roller lever actuator constructed from stainless steel and polybutylene, with copper, gold, and silver contact materials. It offers a voltage rating of 125V AC and a maximum voltage rating of 250V AC, with a solder termination type. The component boasts an electrical life of 6,000 cycles and a mechanical life of 10,000,000 cycles, operating within a temperature range of -40°C to 120°C. Mounting is via chassis mount, and it is RoHS compliant with an IP50 rating.
Current Rating10A
MountingChassis Mount
Quick Jump:
Technical Specifications
Cherry DB2C-A1RC technical specifications.
General
Actuator Material
Stainless Steel, Polybutylene
Actuator Type
ROLLER LEVER
Contact Current Rating
10.1A
Contact Material
Copper, Gold, Silver
Contact Type
1 change-over
Current Rating
10A
Depth
6.45mm
Electrical Life
6000Cycles
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Length
20mm
Max Current Rating
10.1A
Max Operating Temperature
120°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mechanical Life
10000000Cycles
Mount
Chassis Mount
Operating Force
0.93N
Package Quantity
560
Packaging
Bulk
Ratings
IP50
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
Cherry DB2C-A1RC Datasheet
Download the complete datasheet for Cherry DB2C-A1RC to view detailed technical specifications.
