SPDT basic/snap action switch featuring a 100mA contact current rating and 125V AC voltage rating. This switch offers a 1.47N operating force, a 20mm length, and 6.45mm depth, with a polybutylene actuator and solder termination. It boasts an electrical life of 100,000 cycles and a mechanical life of 15,000,000 cycles, operating within a -40°C to 120°C temperature range. Constructed with copper, gold, and silver contacts, it is RoHS compliant and rated IP50.
Package100
Current Rating100mA
MountingChassis Mount
Quick Jump:
Technical Specifications
Cherry DB3C-A1AA technical specifications.
General
| Actuator Material | Polybutylene |
| Package/Case | 100 |
| Color | Black |
| Contact Current Rating | 100mA |
| Contact Material | Copper, Gold, Silver |
| Contact Type | 1 change-over |
| Current Rating | 100mA |
| Depth | 6.45mm |
| Electrical Life | 100000Cycles |
| Flammability Rating | UL94 V-0 |
| Length | 20mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 15000000Cycles |
| Mount | Chassis Mount |
| Operating Force | 1.47N |
| Package Quantity | 1200 |
| Packaging | Bulk |
| Ratings | IP50 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | DB |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Cherry DB3C-A1AA Datasheet
Download the complete datasheet for Cherry DB3C-A1AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

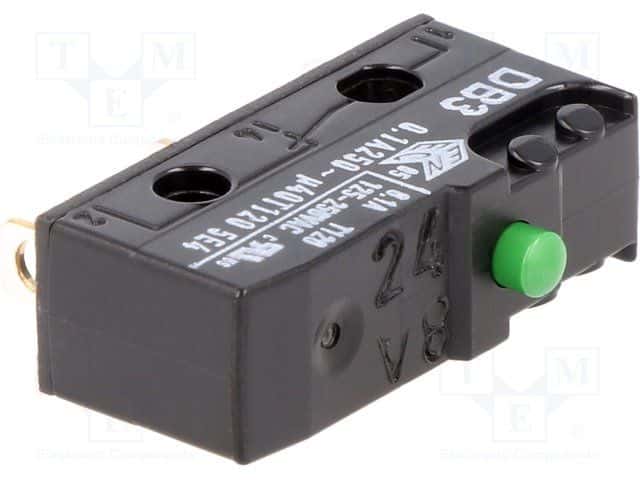

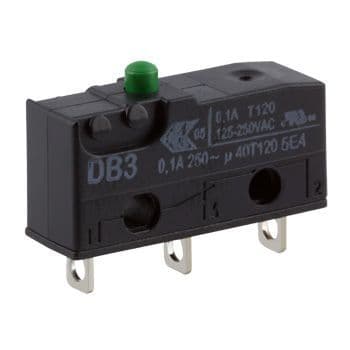

Product Images
