Cherry
DC1C-L1AA
Switch Snap Action N.O./N.C. SPDT Button Quick Connect 6A 250VAC 48VDC 1.96N Screw Mount
Current Rating5A
MountingScrew
Quick Jump:
Technical Specifications
Cherry DC1C-L1AA technical specifications.
General
Actuator Type
ROLLER LEVER
Contact Current Rating
6A
Contact Material
Silver
Contact Type
1 change-over
Current Rating
5A
Lead Free
Lead Free
Max Operating Temperature
120°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Mount
Screw
Operating Force
1.96N
Orientation
Straight
Ratings
IP67
RoHS Compliant
Yes
Termination
Tab
Throw Configuration
SPDT
Width
20mm
Compliance
RoHS
Compliant
Datasheet
Cherry DC1C-L1AA Datasheet
Download the complete datasheet for Cherry DC1C-L1AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

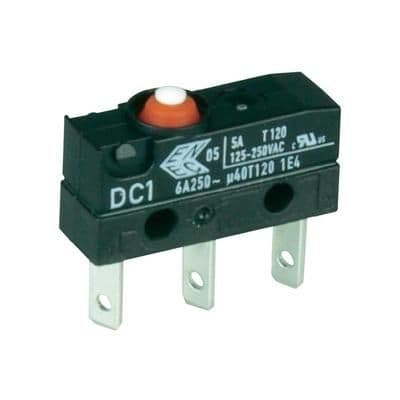

Product Images
