SPDT snap-action switch with PC pins, featuring a 50mA contact current rating and 30VDC voltage rating. This right-angle, through-hole mounted switch offers a 1.37N operating force and gold-plated brass contacts. It boasts an electrical life of 200,000 cycles and a mechanical life of 1,000,000 cycles, with an operating temperature range of -40°C to 85°C. The switch is IP40 rated and lead-free, complying with RoHS standards.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Cherry DG23-B2AA technical specifications.
General
Actuator Material
Polybutylene
Contact Current Rating
50mA
Contact Material
Brass, Gold
Contact Plating
Gold
Contact Type
1 change-over
Current Rating
50mA
Depth
9.5mm
Electrical Life
200000Cycles
Lead Free
Lead Free
Length
12.8mm
Max Current Rating
50mA
Max Operating Temperature
85°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
30V
Mount
Through Hole
Operating Force
1.37N
Orientation
Right Angle
Ratings
IP40
RoHS Compliant
Yes
Series
DG
Termination
Solder
Throw Configuration
SPDT
DC Rated Voltage
30V
Width
12.8mm
Compliance
RoHS
Compliant
Datasheet
Cherry DG23-B2AA Datasheet
Download the complete datasheet for Cherry DG23-B2AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

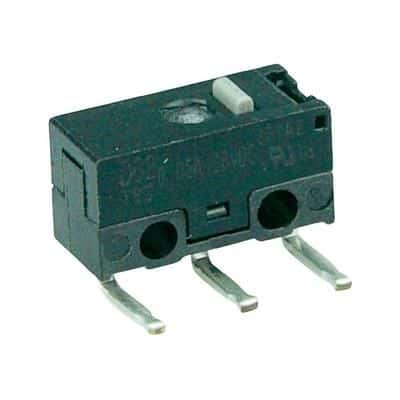

Product Images
