Cirrus Logic
CS42L55-CNZ
24-bit I2C/SPI Bridge IC, 48KS/s Sampling Rate, 10mA Supply Current, QFN Package
The CS42L55-CNZ is a specialized IC from Cirrus Logic, designed for consumer applications. It features a 24-bit resolution and a sampling rate of 48KS/s. This IC is suitable for surface mount applications, with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The CS42L55-CNZ is RoHS compliant and operates within a supply voltage range of 1.65V to 2.71V.
PackageQFN
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cirrus Logic CS42L55-CNZ technical specifications.
General
| Package/Case | QFN |
| Interface | Serial, I2C |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 2.71V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of D/A Converters | 1 |
| Package Quantity | 490 |
| Packaging | Tray |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 48KS/s |
| Supply Current | 10mA |
Compliance
| RoHS | Compliant |
Datasheet
Cirrus Logic CS42L55-CNZ Datasheet
Download the complete datasheet for Cirrus Logic CS42L55-CNZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

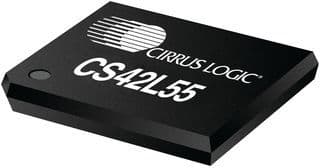

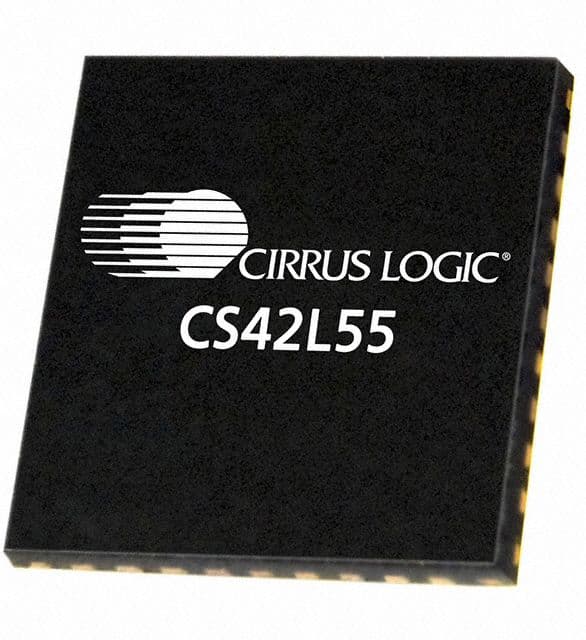

Product Images
