Cirrus Logic
CS4346-CZZ

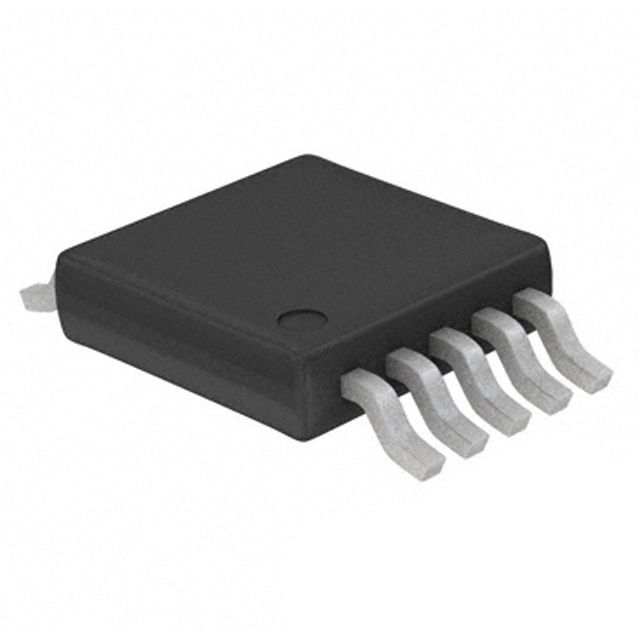

D/A Converter, 1 Func, Serial Input Loading, PDSO10, 3 MM, LEAD FREE, PLASTIC, MO-187, TSSOP-10
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Cirrus Logic CS4346-CZZ technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Conversion Rate
192KS/s
Interface
SPI, Serial
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Max Supply Voltage
5.25V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
22mA
Number of Bits
24
Number of Converters
2
Number of DAC Channels
2
Output Polarity
Bipolar
Output Type
Voltage
Package Quantity
96
Packaging
Rail/Tube
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
192000S/s
Supply Type
Single
Compliance
RoHS
Compliant
Datasheet
Cirrus Logic CS4346-CZZ Datasheet
Download the complete datasheet for Cirrus Logic CS4346-CZZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
