Cirrus Logic
CS5344-DZZ
ADC, Delta-Sigma, 24-Bit, 1 Func, 2 Channel, Serial Access, PDSO10, 3 MM BODY, LEAD FREE, MO-187, TSSOP-10
PackageTSSOP
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Cirrus Logic CS5344-DZZ technical specifications.
General
Package/Case
TSSOP
Contact Plating
Tin, Matte
Conversion Rate
96KS/s
Interface
Serial
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
3.1V
Mount
Surface Mount
Number of A/D Converters
2
Number of Analog Inputs
2
Number of Converters
2
Operating Supply Voltage
5V
Package Quantity
96
Packaging
Rail/Tube
Polarity
Bipolar
Resolution
24b
RoHS Compliant
Yes
Sampling Rate
96000S/s
Supply Type
Single, Analog, Digital
Compliance
RoHS
Compliant
Datasheet
Cirrus Logic CS5344-DZZ Datasheet
Download the complete datasheet for Cirrus Logic CS5344-DZZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

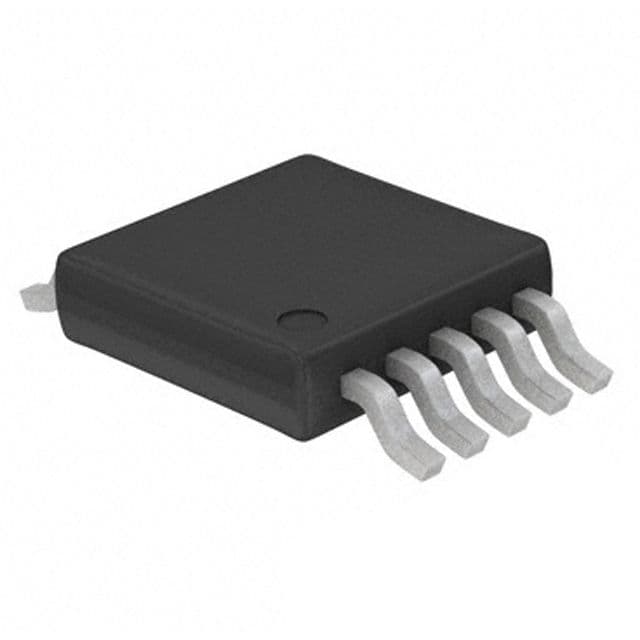

Product Images
