16-bit Analog-to-Digital Converter (ADC) with 4 differential analog inputs. Features a 3.84 kSPS conversion rate and SPI serial interface. Operates with single or dual supplies from 2.375V to 5.25V, with a nominal supply current of 6mA. Packaged in a 24-lead SSOP with tin-matte contact plating, suitable for surface mounting. Extended operating temperature range from -40°C to 85°C.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Cirrus Logic CS5533-ASZR technical specifications.
General
Package/Case
SSOP
Contact Plating
Tin, Matte
Conversion Rate
3.84KS/s
Input Type
DIFFERENTIAL
Interface
SPI, Serial, 3-WIRE
Max Dual Supply Voltage
3.15V
Min Dual Supply Voltage
2.375V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Nominal Supply Current
6mA
Number of A/D Converters
1
Number of Analog Inputs
4
Number of Bits
16
Number of Channels
4
Number of Converters
1
Number of Inputs
4
Operating Supply Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Resolution
16b
Sampling Rate
3840S/s
Supply Type
Single, Dual
Compliance
RoHS
Compliant
Datasheet
Cirrus Logic CS5533-ASZR Datasheet
Download the complete datasheet for Cirrus Logic CS5533-ASZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

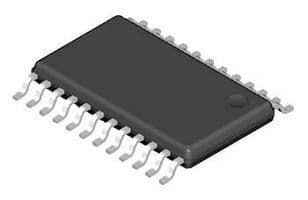

Product Images
