32-bit ARM RISC microprocessor operating at 200MHz. Features include 16KB FLASH memory, 32-bit RAM, and 32 programmable I/Os. Connectivity options encompass SPI, USB, Ethernet, UART, and I2S interfaces. This lead-free, RoHS-compliant component is housed in a TFBGA package, suitable for surface-mount technology. Operating temperature range is 0°C to 70°C with a supply voltage between 3V and 3.6V.
Frequency200MHz
PackageTFBGA
Quick Jump:
Technical Specifications
Cirrus Logic EP9307-CRZ technical specifications.
General
| Access Time | 200us |
| Package/Case | TFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 200MHz |
| Interface | SPI, USB, Ethernet, UART, I2S |
| Lead Free | Lead Free |
| Max Frequency | 200MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Number of Cores | 1 |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of PWM Channels | 1 |
| Number of Timers/Counters | 4 |
| Package Quantity | 119 |
| Packaging | Tray |
| RAM Size | 32b |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EP9 |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Cirrus Logic EP9307-CRZ Datasheet
Download the complete datasheet for Cirrus Logic EP9307-CRZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

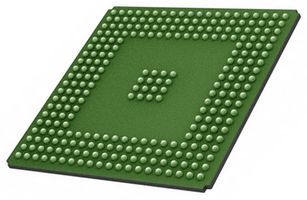

Product Images
