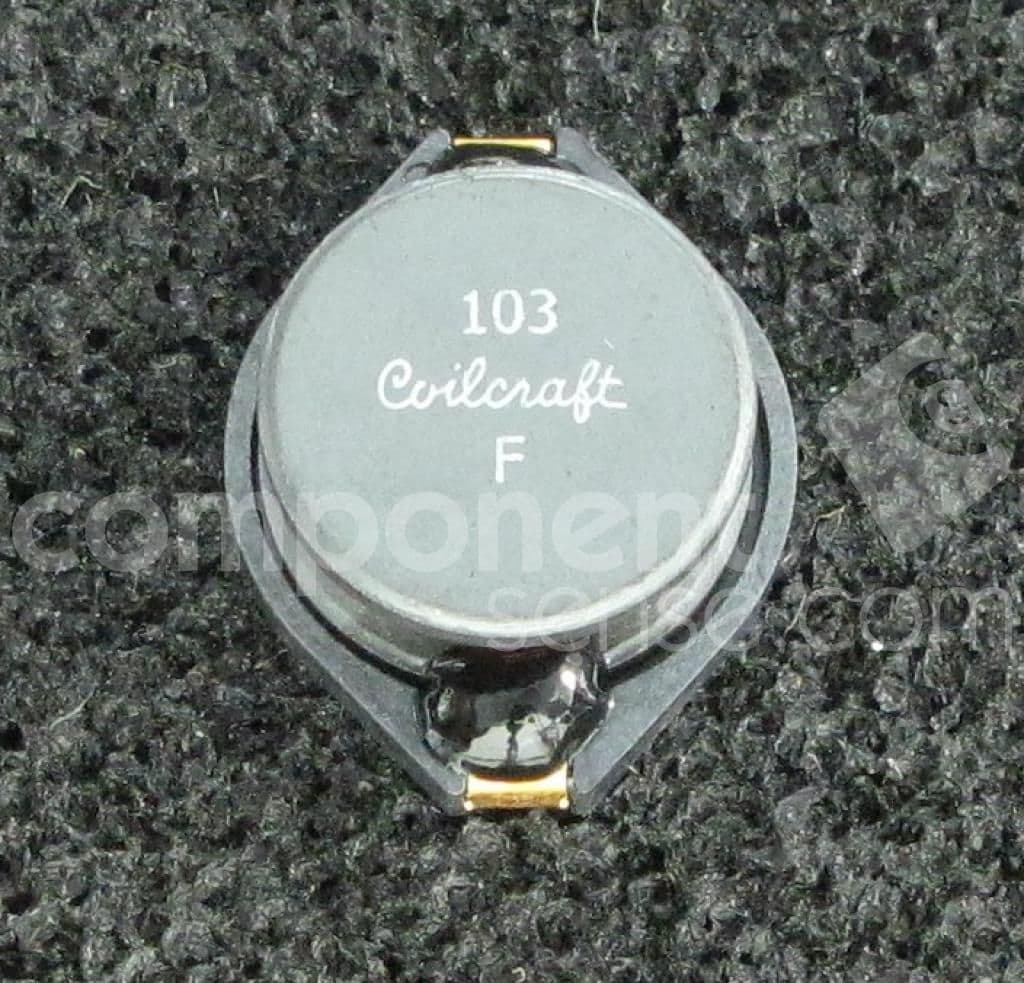

Coilcraft
DO5022P-103MLD
Inductor Power Unshielded Wirewound 10uH 20% 100KHz Ferrite 4.3A 0.031Ohm DCR T/R
PackageSMD/SMT
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Coilcraft DO5022P-103MLD technical specifications.
General
Package/Case
SMD/SMT
Core Material
Ferrite
Height
7.11mm
Inductance
10uH
Inductance Tolerance
20%
Lead Free
Contains Lead
Length
18.54mm
Max DC Current
4.3A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
Reach SVHC Compliant
No
RMS Current (Irms)
4.3A
RoHS Compliant
Yes
Saturation Current
9.4A
Self Resonant Frequency
30MHz
Series
DO5022P
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
15.24mm
Compliance
RoHS
Compliant
Datasheet
Coilcraft DO5022P-103MLD Datasheet
Download the complete datasheet for Coilcraft DO5022P-103MLD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
