Coilcraft
WBC1-1LB
RF Transformer 1:1 300Vrms 0.12Ohm Prim. DCR 0.12Ohm Sec. DCR 6 Terminal SMD Automotive
Current Rating250mA
Inductance10uH
Quick Jump:
Technical Specifications
Coilcraft WBC1-1LB technical specifications.
General
Core Material
Ferrite
Current Rating
250mA
Height
3.05mm
Inductance
10uH
Isolation Voltage
300V
Lead Free
Contains Lead
Length
4.45mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Package Quantity
100
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
WBC
Shielding
Unshielded
Termination
SMD/SMT
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Coilcraft WBC1-1LB Datasheet
Download the complete datasheet for Coilcraft WBC1-1LB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

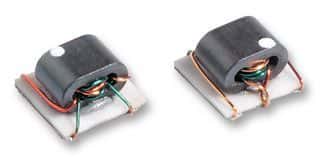

Product Images
