Schottky bridge rectifier diode, 1A average rectified current, 100V repetitive peak reverse voltage. Features a maximum surge current of 30A and a maximum reverse leakage current of 5mA. Operates across a temperature range of -55°C to 125°C. Surface mount package with dimensions of 4.9mm length, 4.2mm width, and 2.9mm height. Supplied in tape and reel packaging, 2500 units per package, and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Comchip CDBHD1100L-G technical specifications.
General
| Average Rectified Current | 1A |
| Height | 2.9mm |
| Length | 4.9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 5mA |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Technology | SCHOTTKY |
| Width | 4.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Comchip CDBHD1100L-G Datasheet
Download the complete datasheet for Comchip CDBHD1100L-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

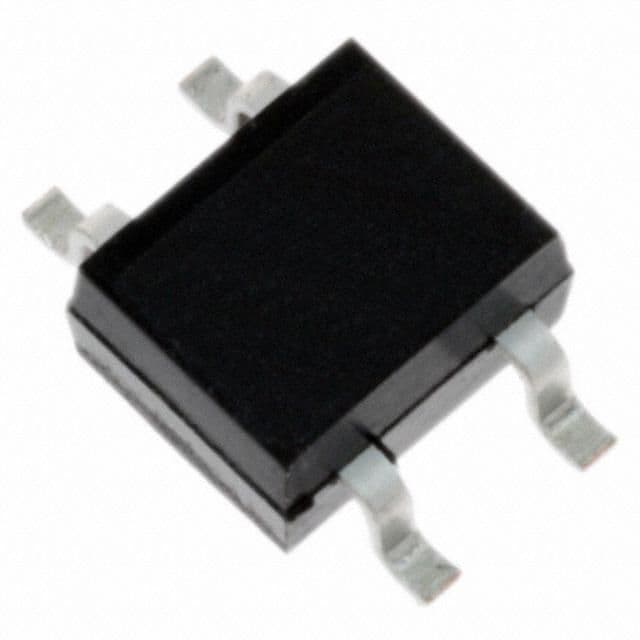

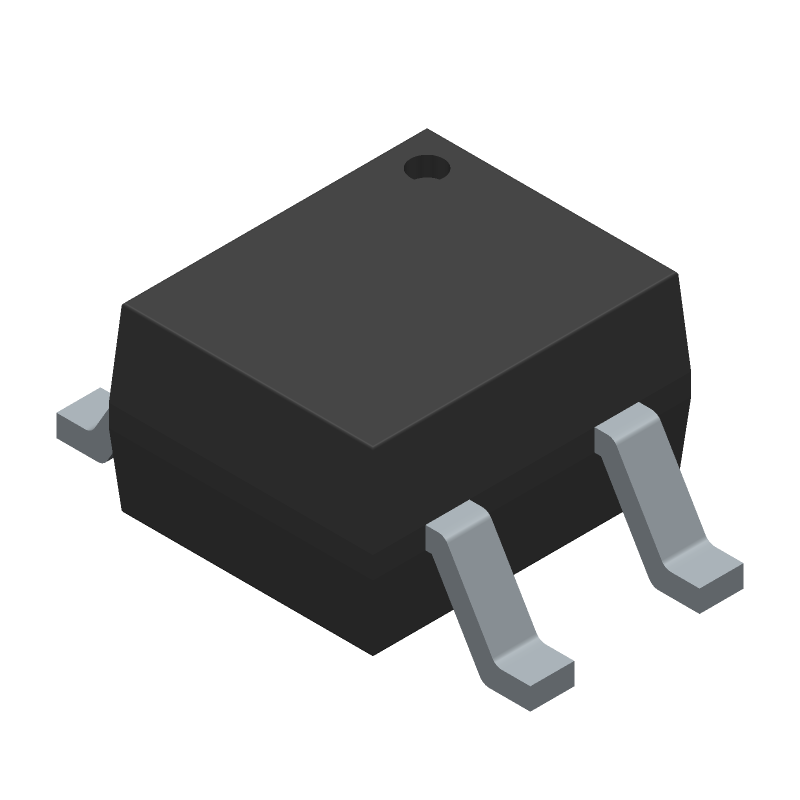

Product Images
