The CDBQR70 is a surface mount general purpose rectifier with a maximum reverse voltage of 70V and average rectified current of 70mA. It has a maximum power dissipation of 125mW and a maximum surge current of 100mA. The device is packaged in a 0402 case and is available in quantities of 5000. It is RoHS compliant and suitable for use in a variety of applications.
Package0402
MountingSurface Mount
Quick Jump:
Technical Specifications
Comchip CDBQR70 technical specifications.
General
| Average Rectified Current | 70mA |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Max Power Dissipation | 125mW |
| Max Reverse Leakage Current | 100nA |
| Max Reverse Voltage (DC) | 70V |
| Max Surge Current | 100mA |
| Mount | Surface Mount |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Reverse Recovery Time | 5ns |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Comchip CDBQR70 Datasheet
Download the complete datasheet for Comchip CDBQR70 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

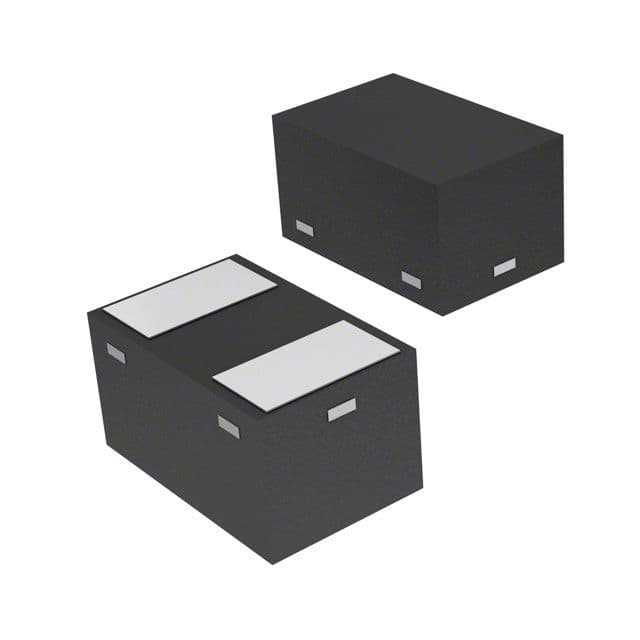

Product Images
