Unidirectional Transient Voltage Suppressor (TVS) diode, 200W peak pulse power, 5V reverse standoff voltage, and 9.8V clamping voltage. Features a minimum breakdown voltage of 6V and a maximum power dissipation of 125mW. This silicon diode offers 90pF capacitance and operates within a temperature range of -55°C to 125°C. Designed for surface mount applications in a 0402 (1005) package, it provides 16A peak pulse current capability.
Package0402
Capacitance90pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Comchip CPDQR5V0U technical specifications.
General
Capacitance
90pF
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Clamping Voltage
9.8V
Diode Type
ZENER
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
125mW
Mount
Surface Mount
Number of Unidirectional Channels
1
Operating Supply Voltage
800mV
Package Quantity
5000
Packaging
Tape and Reel
Peak Pulse Current
16A
Peak Pulse Power
200W
Power Line Protection
No
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Comchip CPDQR5V0U Datasheet
Download the complete datasheet for Comchip CPDQR5V0U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

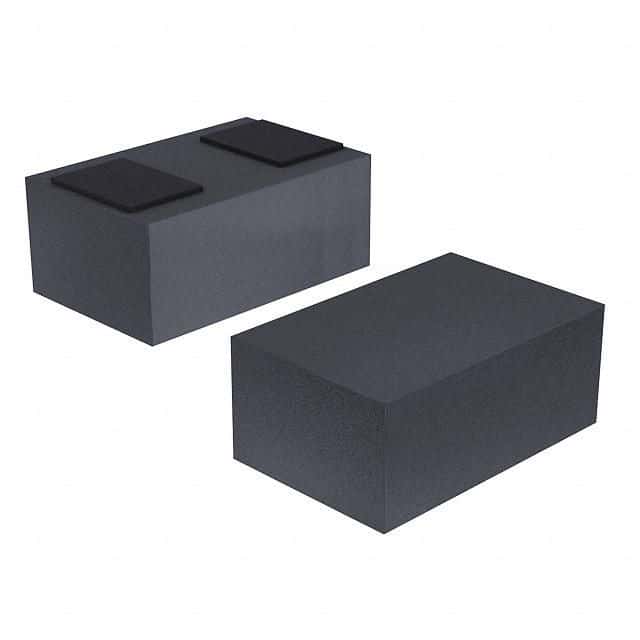

Product Images
