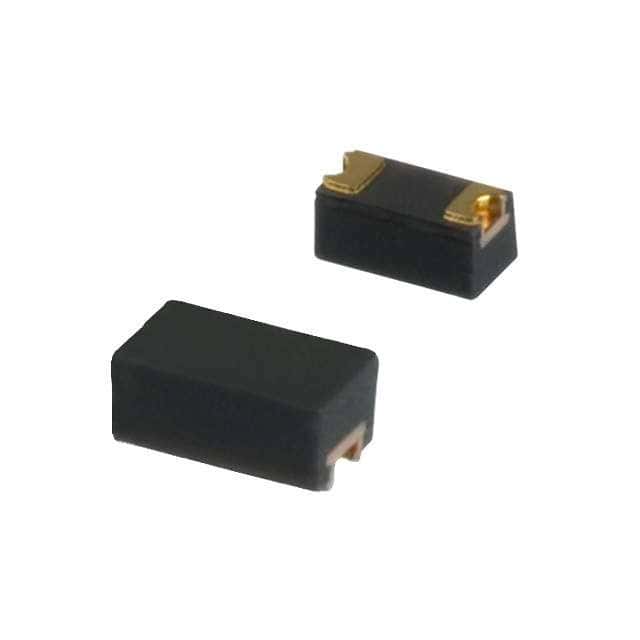

Bidirectional Transient Voltage Suppressor (TVS) diode, 47W peak pulse power, designed for surface mount applications. Features a 24V DC rated voltage, 25V clamping voltage, and 1A peak pulse current. This silicon diode offers a minimum breakdown voltage of 25V and a reverse standoff voltage of 24V. Housed in a compact 0603 SMD/SMT package, it operates across a temperature range of -55°C to 125°C and boasts a low capacitance of 10pF. RoHS compliant and lead-free.
PackageSMD/SMT
Capacitance10pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Comchip CPDU24V technical specifications.
General
Capacitance
10pF
Case Code (Imperial)
0603
Package/Case
SMD/SMT
Clamping Voltage
25V
Diode Type
ZENER
Height
950um
Lead Free
Lead Free
Length
1.6mm
Min Breakdown Voltage
25V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Bidirectional Channels
1
Package Quantity
4000
Packaging
Tape and Reel
Peak Pulse Current
1A
Peak Pulse Power
47W
Power Line Protection
No
Reverse Standoff Voltage
24V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
24V
Width
800um
Compliance
RoHS
Compliant
Datasheet
Comchip CPDU24V Datasheet
Download the complete datasheet for Comchip CPDU24V to view detailed technical specifications.
