Surface mount bridge rectifier with 4A average rectified current and 1000V reverse voltage. Features a maximum surge current of 150A and a low reverse leakage current of 5uA. Operates across a wide temperature range from -55°C to 175°C. Dimensions are 10.6mm length, 8.2mm width, and 1.55mm height. Supplied in tape and reel packaging, with 3000 units per package, and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Comchip Z4DGP410L-HF technical specifications.
General
Average Rectified Current
4A
Height
1.55mm
Length
10.6mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
5uA
Max Surge Current
150A
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Width
8.2mm
Compliance
RoHS
Compliant
Datasheet
Comchip Z4DGP410L-HF Datasheet
Download the complete datasheet for Comchip Z4DGP410L-HF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

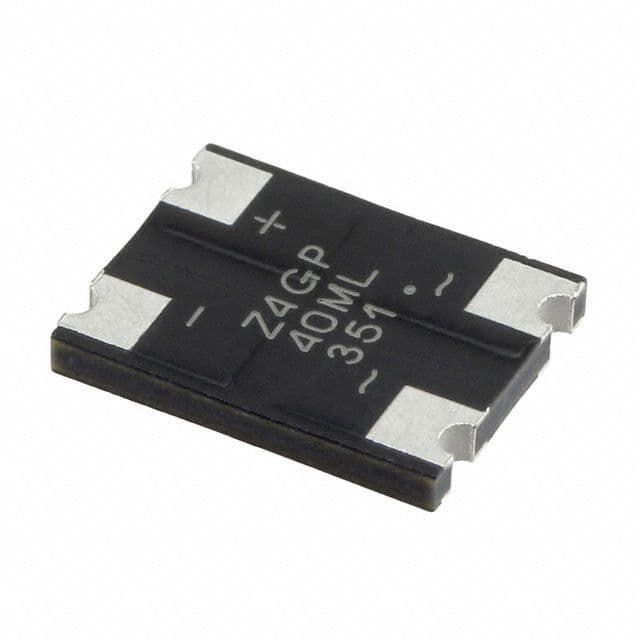

Product Images
