SMD crystal oscillator operating at 114.285MHz. Features 18pF load capacitance and 100ppm frequency tolerance/stability. Designed for surface mount applications with an 80 Ohm ESR. Operates across a -40°C to 85°C temperature range and is RoHS compliant.
Frequency114.285MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Connor-Winfield CS-018-114.285M technical specifications.
General
Package/Case
SMD/SMT
ESR (Equivalent Series Resistance)
80R
Frequency
114.285MHz
Frequency Stability
100ppm
Frequency Tolerance
100ppm
Load Capacitance
18pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Cut Tape
RoHS Compliant
Yes
Series
CS-018
Compliance
RoHS
Compliant
Datasheet
Connor-Winfield CS-018-114.285M Datasheet
Download the complete datasheet for Connor-Winfield CS-018-114.285M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

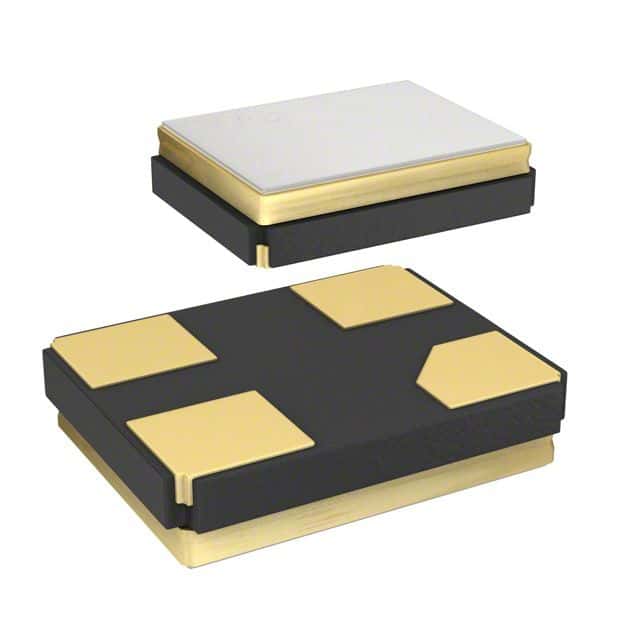

Product Images
