Surface mount crystal oscillator operating at 50MHz. Features LVCMOS output and ±25ppm frequency stability. Designed for surface mount applications with a temperature range of -20°C to 70°C. Maximum supply current is 30mA. This component is lead-free and RoHS compliant.
Frequency50MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Connor-Winfield CWX813-050.0M technical specifications.
General
Package/Case
SMD/SMT
Frequency
50MHz
Frequency Stability
25ppm
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Supply Current
30mA
Mount
Surface Mount
Nominal Supply Current
30mA
Packaging
Cut Tape
RoHS Compliant
Yes
Series
CWX813
Compliance
RoHS
Compliant
Datasheet
Connor-Winfield CWX813-050.0M Datasheet
Download the complete datasheet for Connor-Winfield CWX813-050.0M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

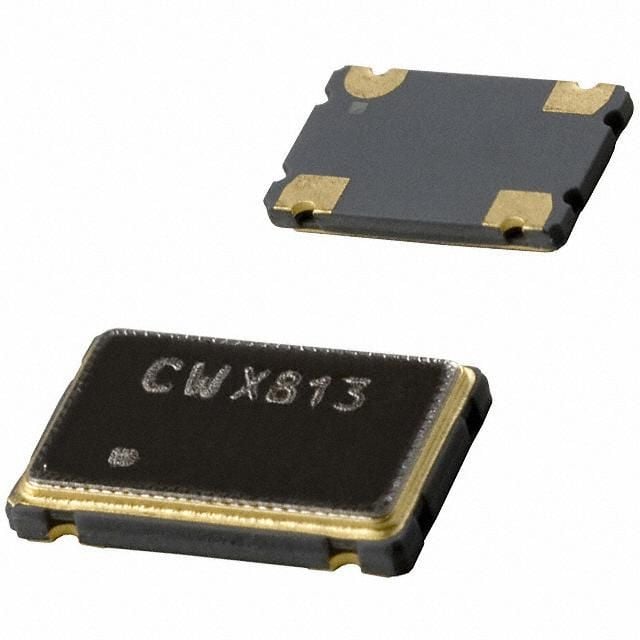

Product Images
