Surface mount voltage-controlled crystal oscillator (VCXO) operating at 25MHz. Features LVCMOS output and a wide operating temperature range of -40°C to 85°C. Maximum supply current is 6mA. Packaged in cut tape for automated assembly. RoHS compliant.
Frequency25MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Connor-Winfield T604-025.0M technical specifications.
General
Package/Case
SMD/SMT
Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
6mA
Mount
Surface Mount
Packaging
Cut Tape
RoHS Compliant
Yes
Series
T
Compliance
RoHS
Compliant
Datasheet
Connor-Winfield T604-025.0M Datasheet
Download the complete datasheet for Connor-Winfield T604-025.0M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

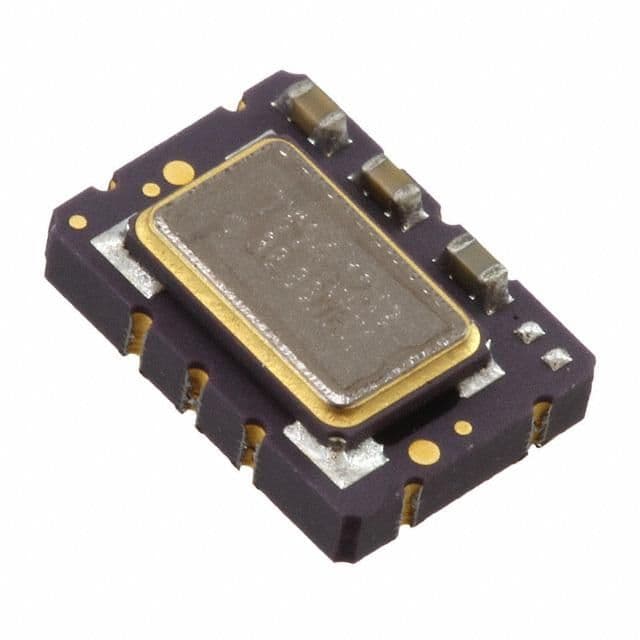

Product Images
