Contelec
GL100-10KM340
Angular Position Sensor Output Type = Resistive / Angle - Electrical ° = 340 / Angle - Mechanical ° = 348 / Resistance kOhm = 10 / Tolerance % = 20 / Linearity (±) % = 0.25 / Operating Voltage Max. V = 42 / Recommended Operating Wiper Current uA = 1 / Termination Type = Cable Terminal / Settable Torque Ncm = 1.5 / Cable Length m = 1 / Mounting Type = Wall Mount / Protection Rating = IP63 / Operating Temperature Min. °C = -25 / Operating Temperature Max. °C = 75
Quick Jump:
Technical Specifications
Contelec GL100-10KM340 technical specifications.
General
Life (Hours)
5Hour
Linearity
0.25%
Operating Supply Voltage
42V
Ratings
IP63
Compliance
RoHS
Compliant
Datasheet
Contelec GL100-10KM340 Datasheet
Download the complete datasheet for Contelec GL100-10KM340 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

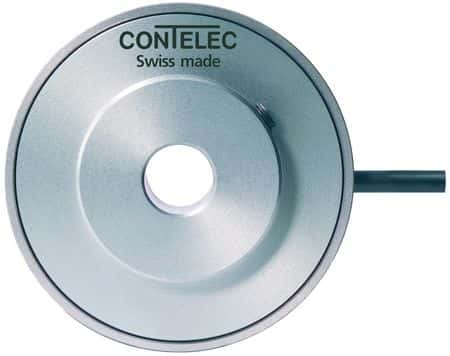

Product Images
