Radial mica capacitor with 180pF capacitance and 5% tolerance, rated for 500V DC. Features a mica dielectric, operating temperature range of -55°C to 125°C, and lead-free termination. Dimensions include 11.7mm length, 4.8mm width, 9.4mm height, with a 5.9mm lead pitch and 0.6mm lead diameter. Designed for through-hole mounting.
PackageRadial
Capacitance180pF
Voltage Rating500V
MountingThrough Hole
Quick Jump:
Technical Specifications
Cornell Dubilier CD15FD181JO3 technical specifications.
General
Capacitance
180pF
Package/Case
Radial
Construction
RADIAL
Depth
4.8mm
Dielectric Material
Mica
Features
General Purpose
Height
9.4mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5.9mm
Length
11.7mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
No
Series
CD15
Termination
Radial
Tolerance
5%
Voltage Rating
500V
DC Rated Voltage
500V
Width
4.8mm
Compliance
RoHS
Not CompliantNo
Datasheet
Cornell Dubilier CD15FD181JO3 Datasheet
Download the complete datasheet for Cornell Dubilier CD15FD181JO3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

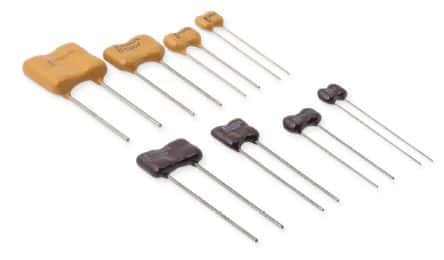

Product Images
