Radial mica capacitor with 470pF capacitance and 500V DC rating. Features 1% tolerance and a maximum operating temperature of 125°C. Through-hole mounting with a 5.9mm lead pitch. Dimensions are 11.9mm length, 5.6mm width, and 10.2mm height. RoHS compliant.
PackageRadial
Voltage500V
Capacitance470pF
Voltage Rating500V
Quick Jump:
Technical Specifications
Cornell Dubilier CD15FD471FO3F technical specifications.
General
Capacitance
470pF
Package/Case
Radial
Construction
RADIAL
Depth
5.6mm
Dielectric Material
Mica
Features
General Purpose
Height
10.2mm
Lead Diameter
0.6mm
Lead Length
2.54mm
Lead Pitch
5.9mm
Length
11.9mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CD15
Termination
Radial
Tolerance
1%
Voltage
500V
Voltage Rating
500V
DC Rated Voltage
500V
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Cornell Dubilier CD15FD471FO3F Datasheet
Download the complete datasheet for Cornell Dubilier CD15FD471FO3F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

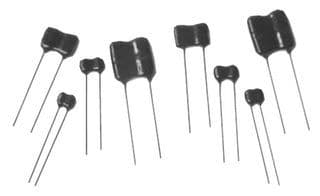

Product Images
