General purpose mica capacitor with 560pF capacitance and 5% tolerance. Features a 500V DC rated voltage and operates across a -55°C to 125°C temperature range. Radial leaded, through-hole mounting component with a 8.7mm lead pitch and 0.8mm lead diameter. Dimensions are 16.5mm length, 5.1mm width, and 13mm height.
PackageRadial
Voltage500V
Capacitance560pF
Voltage Rating500V
Quick Jump:
Technical Specifications
Cornell Dubilier CD19FD561JO3F technical specifications.
General
| Capacitance | 560pF |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 5.1mm |
| Dielectric Material | Mica |
| Features | General Purpose |
| Height | 13mm |
| Lead Diameter | 0.8mm |
| Lead Pitch | 8.7mm |
| Length | 16.5mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | CD19 |
| Termination | Radial |
| Tolerance | 5% |
| Voltage | 500V |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
| Width | 5.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier CD19FD561JO3F Datasheet
Download the complete datasheet for Cornell Dubilier CD19FD561JO3F to view detailed technical specifications.
No datasheet is available for this part.

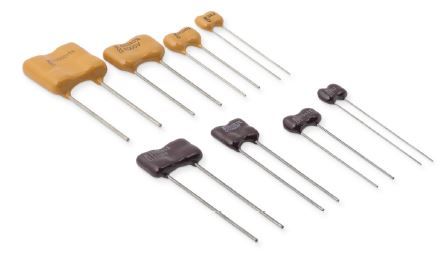

Product Images
