Radial mica capacitor with 820pF capacitance and 5% tolerance, rated for 500V DC. Features a -55°C to 125°C operating temperature range and through-hole mounting. Dimensions are 16.5mm length, 5.3mm depth, and 13mm height with an 8.7mm lead pitch.
PackageRadial
Voltage500V
Capacitance820pF
Voltage Rating500V
Quick Jump:
Technical Specifications
Cornell Dubilier CD19FD821JO3F technical specifications.
General
Capacitance
820pF
Package/Case
Radial
Construction
RADIAL
Depth
5.3mm
Dielectric Material
Mica
Features
General Purpose
Height
0.51inch
Lead Diameter
0.8mm
Lead Pitch
8.7mm
Length
16.5mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
50
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CD19
Termination
Radial
Tolerance
5%
Voltage
500V
Voltage Rating
500V
DC Rated Voltage
500V
Width
0.21inch
Compliance
RoHS
Compliant
Datasheet
Cornell Dubilier CD19FD821JO3F Datasheet
Download the complete datasheet for Cornell Dubilier CD19FD821JO3F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

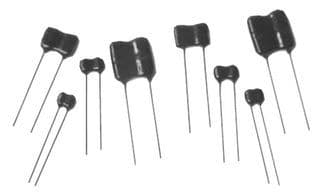

Product Images
