Cornell Dubilier
DCMC222T450BF2B
Cap Aluminum Lytic 2200uF 450V -10% to 50% (50.8 X 142.88mm) Screw Terminal 0.059 Ohm 7100mA 2000h 85°C
PackageRadial
Capacitance2.2mF
Voltage Rating450V
MountingChassis Mount
Quick Jump:
Technical Specifications
Cornell Dubilier DCMC222T450BF2B technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Diameter | 50.8mm |
| ESR (Equivalent Series Resistance) | 58.6mR |
| Height - Seated (Max) | 5.625inch |
| Lead Free | Lead Free |
| Lead Pitch | 0.875inch |
| Length | 143mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | DCMC |
| Termination | Screw |
| Tolerance | 50% |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier DCMC222T450BF2B Datasheet
Download the complete datasheet for Cornell Dubilier DCMC222T450BF2B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

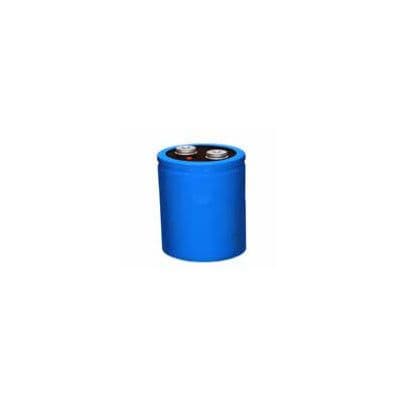

Product Images
