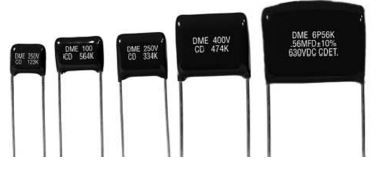

General purpose radial film capacitor with 39nF capacitance and 400V DC rating. Features PET dielectric, 10% tolerance, and a dissipation factor of 1%. Operates from -55°C to 125°C with a 10mm lead pitch and 0.6mm lead diameter. Dimensions are 12.5mm length, 4.9mm width, and 8mm height.
PackageRadial
Capacitance39nF
Voltage Rating400V
MountingThrough Hole
Quick Jump:
Technical Specifications
Cornell Dubilier DME4S39K-F technical specifications.
General
Capacitance
39nF
Package/Case
Radial
Construction
RADIAL
Depth
4.9mm
Dielectric
PET
Dielectric Material
Polyester
Dissipation Factor
1%
Height
8mm
Height - Seated (Max)
0.315inch
Lead Diameter
0.6mm
Lead Pitch
10mm
Length
12.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
DME
Termination
PC Pins
Tolerance
10%
Type
General Purpose
Voltage Rating
400V
Voltage Rating (AC)
200V
DC Rated Voltage
400V
Width
4.9mm
Compliance
RoHS
Compliant
Datasheet
Cornell Dubilier DME4S39K-F Datasheet
Download the complete datasheet for Cornell Dubilier DME4S39K-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
