Radial film capacitor with 1.5µF capacitance and 630V DC rating. Features PET dielectric, 10% tolerance, and a maximum operating temperature of 125°C. Dimensions are 31mm x 16mm x 25mm with a 28mm lead pitch. Through-hole mounting with PC pin termination.
PackageRadial
Capacitance1.5uF
Voltage Rating630V
MountingThrough Hole
Quick Jump:
Technical Specifications
Cornell Dubilier DME6W1P5K-F technical specifications.
General
| Capacitance | 1.5uF |
| Package/Case | Radial |
| Dielectric | PET |
| Dielectric Material | Polyester |
| Height | 25mm |
| Height - Seated (Max) | 1.043inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 28mm |
| Length | 1.22inch |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DME |
| Termination | PC Pins |
| Tolerance | 10% |
| Voltage Rating | 630V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 630V |
| Width | 0.63inch |
Compliance
| RoHS | Compliant |
Datasheet
Cornell Dubilier DME6W1P5K-F Datasheet
Download the complete datasheet for Cornell Dubilier DME6W1P5K-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

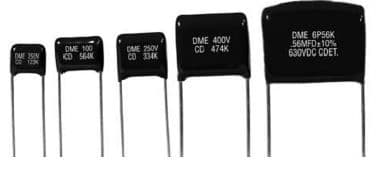

Product Images
