Aluminum electrolytic capacitor with 11mF capacitance and 50V DC rated voltage. Features 36mR ESR, 9.6A ripple current, and 2000-hour life at 85°C. Radial package with screw mount, measuring 44.45mm x 12.7mm x 76.2mm. Operates from -55°C to 85°C with 20% tolerance.
PackageRadial
Voltage50V
Capacitance11mF
Voltage Rating50V
Quick Jump:
Technical Specifications
Cornell Dubilier MLP113M050EB0A technical specifications.
General
Capacitance
11mF
Package/Case
Radial
Construction
RADIAL
Depth
12.7mm
Dielectric Material
Aluminium
ESR (Equivalent Series Resistance)
36mR
Height
12.7mm
Lead Diameter
1.02mm
Lead Free
Lead Free
Lead Pitch
1inch
Lead/Base Style
Straight
Leakage Current
2nA
Length
44.45mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Chassis Mount, PCB
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
9.6A
RoHS Compliant
No
Series
MLP
Termination
Radial
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
44mm
Compliance
RoHS
Not CompliantNo
Datasheet
Cornell Dubilier MLP113M050EB0A Datasheet
Download the complete datasheet for Cornell Dubilier MLP113M050EB0A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

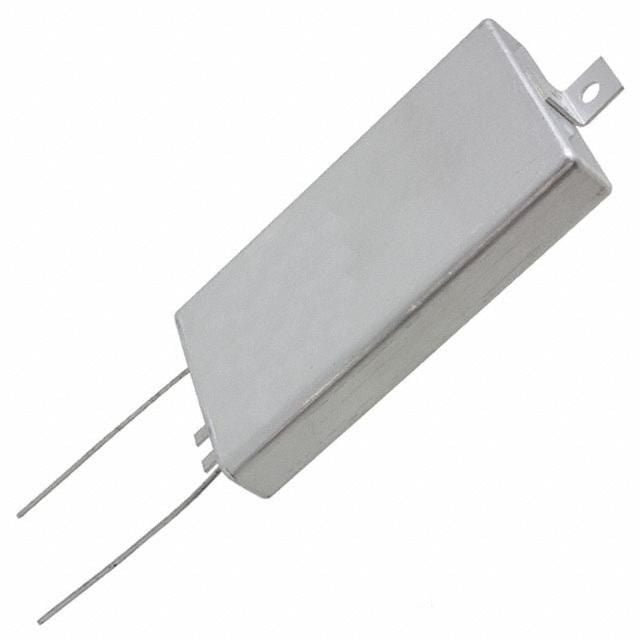

Product Images
